Nightwave Analog fastener options:
Supplied - 4X #12 Wood Screws. Install through base plate into mounting surface.
Non-Supplied - 4X Machine Screws. Install through mounting surface into underside of base plate.
(These are not supplied due to the wide variation in mounting surfaces, therefore please select machine screws of suitable length for your application).
Link to Installation Template

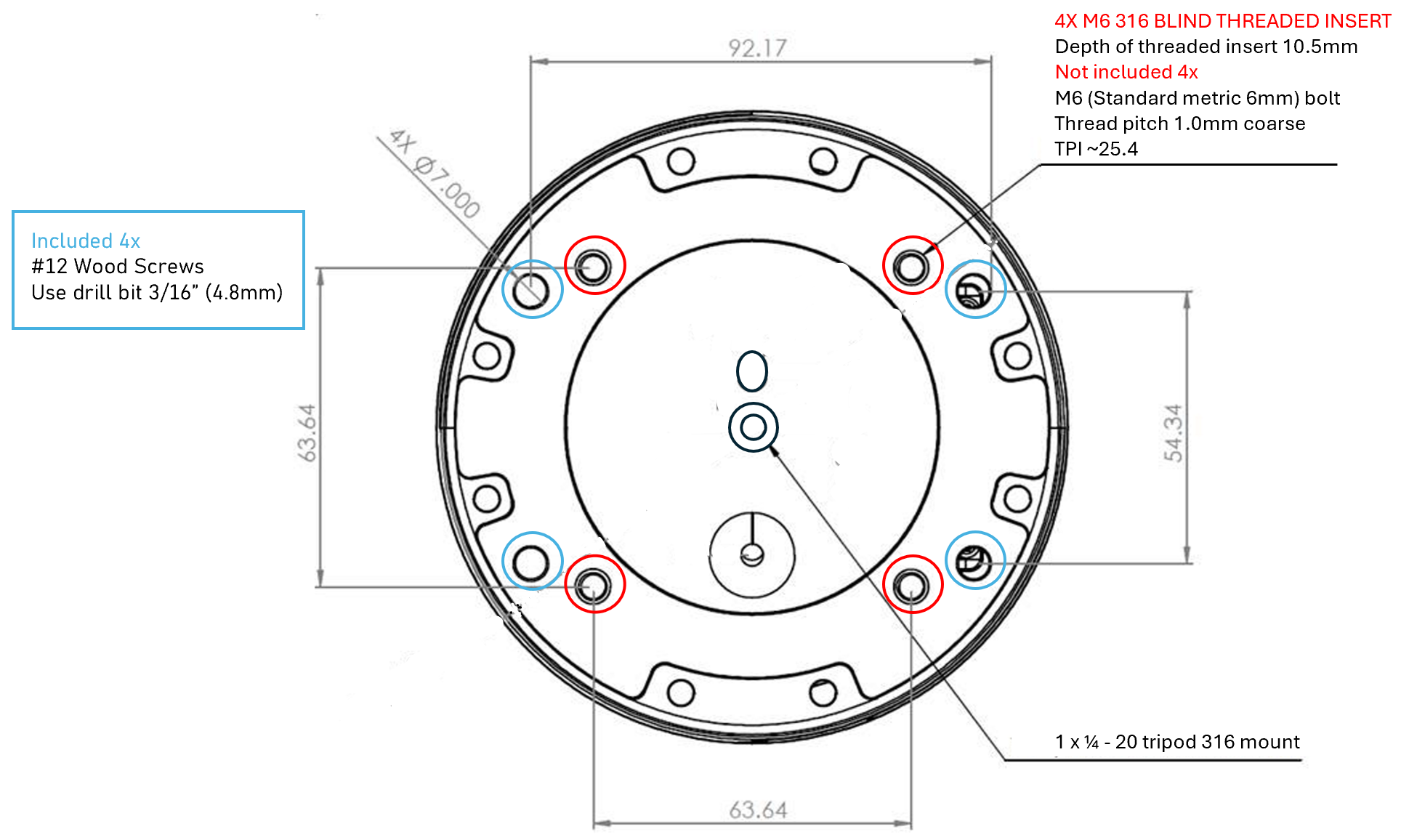

BASE PLATE DIAGRAM:
